產品介紹

Mechanical Design

Strong, compact body

The main structure castings are made of high quality Meehanite cast iron, with stable structure and permanent quality assurance

Highly efficient processing

Continuously shorten the acceleration/deceleration time of the spindle and change the tool time, increase the feed speed, reduce the auxiliary time, and improve the cutting efficiency

Henry-Machine

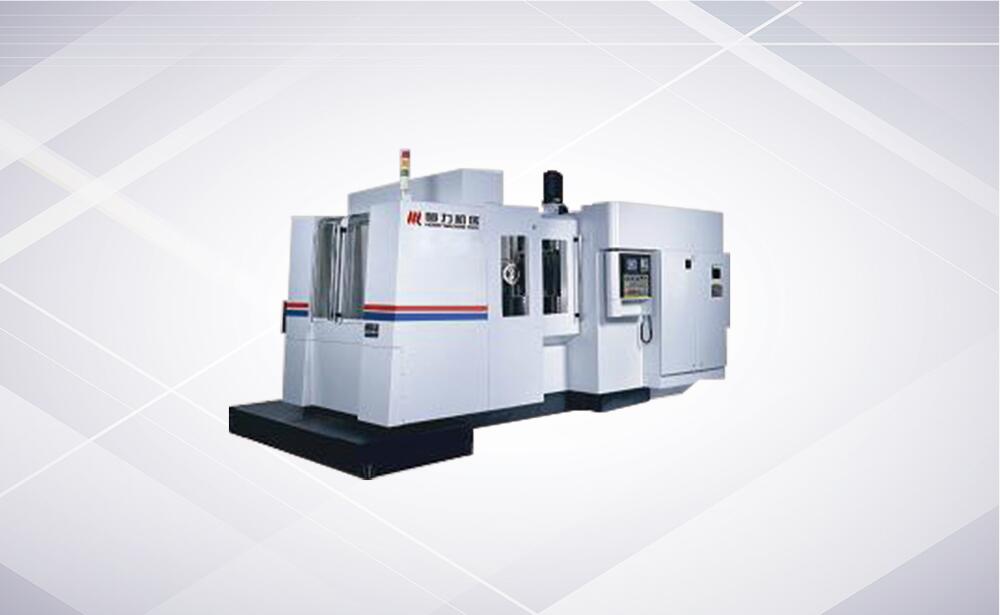

Positive T-horizontal machining center parameter table

Specifications			HMC63T?series		HMC-80T?series
Project name			HMC63-T/1	HMC63-T/2	HMC80-T/1	HMC80-T/2
Project name			(single table)	(Exchange Workbench)	(single table)	(Exchange Workbench)
Bench	Working desk size		630x700mm	630x700mm	800x800mm	800x800mm
	Table indexing		1°（0.001°）	1°（0.001°）	1°（0.001°）	1°（0.001°）
	Workbench maximum load		1200kg	1200kg	1500kg	1500kg
	Maximum workpiece rotation diameter		φ1000mm	φ1000mm	φ1600mm	φ1600mm
Travel	Positive T layout	Workbench rotates left and right (X direction)	1050mm	1050mm	1300mm	1300mm
		Spindle head up and down (Y direction)	810mm	810mm	1000mm	1000mm
		Columns move back and forth (Z direction)	900mm	900mm	1000mm	1000mm
Spindle (Taiwan) [Synchronization Belt 1:1 Drive]	BT50 ring spray	Spindle bearing inner diameter	100mm	100mm	100mm	100mm
		Maximum speed	6000rpm	6000rpm	6000rpm	6000rpm
		Spindle centerline to table distance	120~930mm	0~810mm	120~1120mm	0~1000mm
		Distance from the main bearing surface to the center of the table	130~1030mm	130~1030mm	200~1200mm	200~1200mm
Fast moving speed	X direction, Y direction, Z direction		36m/min	36m/min	36m/min	36m/min
Fast moving speed	B axis		10r/min	10r/min	10r/min	10r/min
Magazine	Tool selection method		random	random	random	random
	Pull type		Type MAS 2	Type MAS 2	Type MAS 2	Type MAS 2
	Number of tools		40[60]	40[60]	40[60]	40[60]
	Maximum tool diameter (adjacent)		φ115mm	φ115mm	φ115mm	φ115mm
	Maximum tool diameter (lead empty knife)		φ250mm	φ250mm	φ250mm	φ250mm
	Maximum tool length		450mm	450mm	450mm	450mm
	Maximum tool weight		25kg	25kg	25kg	25kg
	Tool change time (tool to knife) varies with tool weight		2.5s	2.5s	2.5s	2.5s
	Tool change time (cut to cut) varies with tool weight		6s	6s	6s	6s
APC	Pallet exchange			2-sided rotation		2-sided rotation
APC	Pallet exchange time			15s		15s
Positioning accuracy (GB)	X direction, Y direction, Z direction		0.01mm(full course)	0.01mm(full course)	0.012mm(full course)	0.012mm(full course)
Repeatability	X direction, Y direction, Z direction		0.006mm(full course)	0.006mm(full course)	0.008mm(full course)	0.008mm(full course)
CNC system	?FANUC system，SIEMENS system，Mitsubishi?system

Configuration list

Standard configuration	Optional configuration
Spindle speed 6000RPM	Spindle speed 8000RPM
Spindle airtight system	Three-axis grating
Spindle roller track	Fourth axis scale
Worktable 1° graduation	Spindle outside blowing system
Cutting fluid ring spray	Spindle Center Outlet System
Scraper drainage system	FANUC 31IMD
Chip collection trolley	ZF gearbox

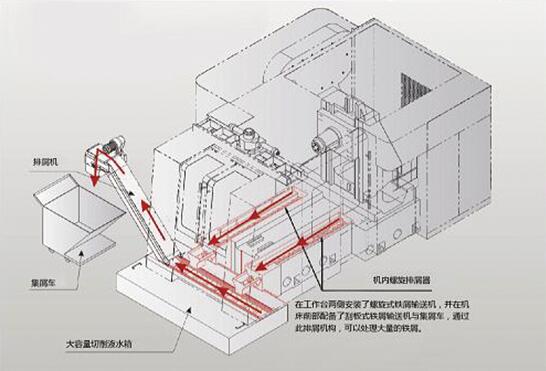

nternal screw chip removal system	Spindle oil cooler
Internal oil and water separation system	Triaxial hollow cooling system
Roof punch system
Water separator
M30 automatic disconnection system
working lamp
Warning Light
Electric box heat exchanger
?FANUC OIMD
